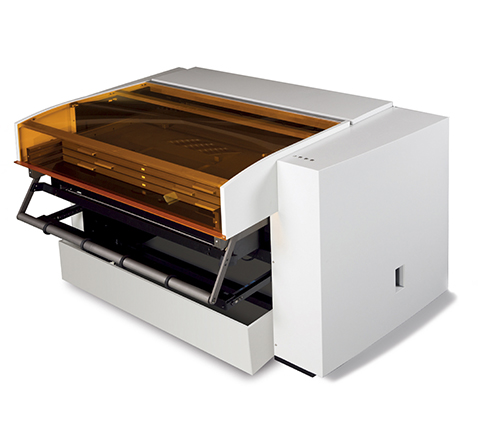

AL36 Autoloader series
Single and multiple cassette autoloaders
Model
AL36-200 - AL36-50M3
Max quantity per cassette
200, 500 or 50 depending on model
Max loading (0.3 plates)
200 plates, 500 plates or 150 plates (50 x 3) depending on model
Max loading size
925mm x 670 mm
Min loading size
320mm x 240 mm
Types of plate
UV/Thermal
| Model | AL36-200 | AL36-500 | AL36-50M3 |
| Max quantity per cassette | 200 | 500 | 50 |
| Max loading quantity (0.3 plates) | 200 plates | 500 plates | 150 plates (50 x 3) |
| Plates |
| Max loading size | 925mm x 670 mm |
| Min loading size | 320mm x 240 mm |
| Types of plate | UV/Thermal |
| Size & weight |
| Dimensions (L x W x H) |
1580 x 980 x 1020 mm | 1600 x 1200 x 1100 mm |
| Packing size (L x W x H) |
1900 x 1360 x 138 mm | 1900 x 1600 x 1470 mm |
| Machine net weight | 350 kg | 500 kg |
| Gross weight (including packaging) | 450 kg |
| Power & working environment |
| Power supply | 1-phase AC 220-240 V±5% 50/60 Hz |
| Power | 1.5 KW |
| Humidity range | 20 - 70% (non condensing) |
