G Series Thermal CTP

The G series Thermal CTP plate setters provide the perfect answer to print flexibility. The next-generation laser platform combined with liquid-cooling technology, ensures enhanced consistency, ease of use and serviceability. Together with patented plate handling technology, the G series models offer maximum reliability with fast throughput.

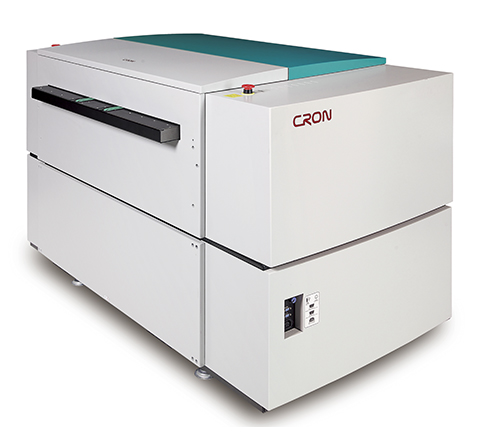

The G 36 models can accommodate a wide flexibility of plate formats, providing adaptability for any print job from A4 to A1, with ample space for register and trim marks as well as colour bars. The 36 series can accommodate autoloaders with up to 3 cassettes of 50 plates, and can be used with CRON plate transport bridges with optional punching. With a processing capability of more than 50 plates per hour, 3696 models can keep several different format presses fed with work, optimising press utilisation, flexibility and overall productivity.

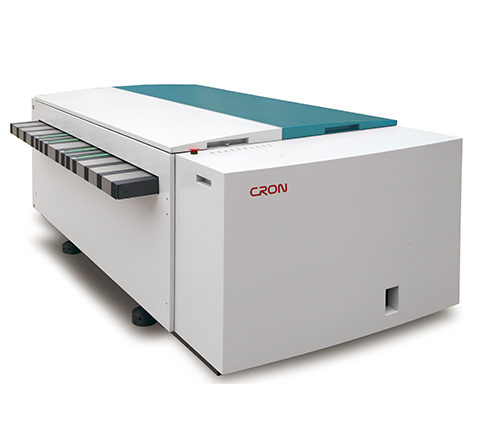

G 72 large format Thermal platesetters are designed for commercial web offset applications and large format sheetfed presses for poster and carton work. An extremely reliable plate handling system completes the G Series package with efficient and smooth load/unload operation to ensure optimum throughput of more than 20 plates per hour for the larger format machine. The 72 series can accommodate a single cassette autoloader for up to 100 plates.

Optional plate feeders and handling systems are available to further automate and streamline production.


36G Thermal Commercial Resolution Specifications

Model TP-3616G TP-3624G TP-3632G TP-3648G TP-3664G TP-3696G
Plate Max 925 x 675 mm / Min 240 x 320 mm (Plate thickness 0.15 - 0.40 mm)
Laser Channel 16 24 32 48 64 96
Speed 14/hr 20/hr 26/hr 36/hr 44/hr 56/hr
  2400dpi/920mm
Power Supply Single phase AC 220V ± 5% 50/60Hz Rated power 5.3KW
Dimensions W x L x H: 975 x 1625 x 1065 mm
Net Weight 1150kg

72G Thermal VLF Commercial Resolution Specifications

Model TP-7232G TP-7248G TP-7264G TP-7296G
Plate Max 1850 x 1422 mm / Min 650 x 550 mm (Plate thickness 0.15 - 0.40 mm)
Laser Channel 32 48 64 96
Speed 8/hr 12/hr 15/hr 21/hr
  2400dpi/1850mm
Power Supply Three phase AC 380V ± 5% 50/60Hz Rated power 10KW
Dimensions W x L x H: 1500 x 2700 x 1200 mm
Net Weight 2300kg
